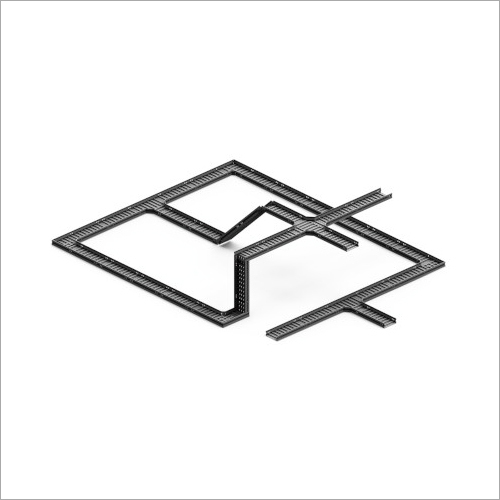

Perforated Type Cable Tray

Name: Perforated Type Cable Tray
Brand: THE GRATINGS INDIA ENGINEERING
Price: 75 INR
Availability: InStock

Price 75 INR/ Kilograms

Get a Price/Quote

MOQ : 5 Tons

Perforated Type Cable Tray Specification

Conductor Material
Steel or Aluminum

Surface Finish
Pre-Galvanized, Hot Dip Galvanized, Powder Coated, Painted

Deflection
Less than 1/250th span

Max. Working Load
Up to 150 kg/m (depending on tray width and material)

Product Type
Perforated Type Cable Tray

Material
Mild Steel, Stainless Steel, Galvanized Iron (GI)

Standard Thickness
1.2 mm, 1.6 mm, 2 mm, 2.5 mm, 3 mm

Length
2500 mm

Width
100 mm to 1000 mm

Side Rail Height
25 mm to 150 mm

Weight
Varies as per size and material (example: 315 kg per meter)

Dimension (L*W*H)
2500 mm (L) x 1001000 mm (W) x 25150 mm (H)

Color
Silver, Grey, or as per customer requirement

Fire Resistance
Conforms to standard fire safety codes

Accessories
Available with couplers, bends, elbows, tees, reducers, cover lids

Edge Type
Smooth flange or bent edge for increased safety

Installation Type
Indoor and outdoor, wall mounted or floor supported

Corrosion Resistance
High, due to galvanized/powder coating

Application
Suitable for electrical cabling in industrial, commercial and infrastructure projects

Operating Temperature Range
-20°C to +100°C

Hole Pattern
Equally spaced round/square perforations for air circulation and cable fastening

Perforated Type Cable Tray Trade Information

Minimum Order Quantity
5 Tons

Supply Ability
5 Tons Per Day

Delivery Time
1-7 Days

About Perforated Type Cable Tray

Specification

Tray Type	Perforated Cable Tray
Cable Tray Coating	Hot-Dip Galvanized, Pre-Galvanized, Painted
Sheet Thickness	2-3 mm
Technique	Hot Rolled
Corrosion Resistance	Yes
Length	2.5 -3 m

Versatile Cable Management Solutions

Designed to accommodate a wide range of electrical cabling needs, Perforated Type Cable Trays are suitable for wall-mounted or floor-supported installations in both indoor and outdoor environments. They are available in multiple sizes and colors, providing the flexibility required for commercial, industrial, and infrastructure projects across India.

Superior Safety and Durability

The trays smooth flange or bent-edge construction minimizes sharp edges, enhancing installer and user safety. Premium corrosion resistance is achieved through high-quality galvanization or powder coating, ensuring long-lasting performance even in demanding conditions. Fire resistance further adds to the trays suitability for critical environments.

Comprehensive Accessories for Customization

A full suite of accessoriessuch as couplers, bends, elbows, tees, reducers, and cover lidssupports tailored cable tray configurations. These options enable contractors to design and implement efficient cable management systems while maintaining operational safety and cable organization.

FAQs of Perforated Type Cable Tray:

Q: How do I install a Perforated Type Cable Tray for different environments?

A: You can mount these cable trays either to the wall or support them on the floor, making them suitable for both indoor and outdoor settings. Select the appropriate surface finish (such as hot dip galvanized or powder coated) for the specific environment to ensure longevity and protection.

Q: What benefits do the equally spaced perforations provide in cable trays?

A: The round or square perforations allow optimal air circulation, which helps prevent overheating of cables, and also enable easy cable fastening and securing, enhancing safety and organization.

Q: Which projects are Perforated Type Cable Trays best suited for?

A: These trays are ideal for electrical cabling in industrial, commercial, or infrastructure projects, such as factories, offices, data centers, and transport facilities due to their robust design and multiple installation options.

Q: When should I use a specific tray thickness or material?

A: Select tray thickness (from 1.2 mm up to 3 mm) and material (mild steel, stainless steel, GI) based on the desired load capacity, corrosion resistance, and project requirements. Heavier loads and harsh environments may require thicker trays and more corrosion-resistant finishes.

Q: Where can I find compatible accessories for these trays?

A: Couplers, bends, elbows, tees, reducers, and cover lids are available and can be supplied with the trays, enabling a complete and tailored installation for various layouts and configurations.

Q: What is the process to ensure fire and corrosion resistance in these cable trays?

A: The trays are manufactured according to standard fire safety codes and use galvanization or powder coating processes to offer high corrosion resistance, making them suitable for demanding and regulated environments.

Q: What is the maximum load capacity and how is safety ensured during usage?

A: Depending on width and material, these trays can support up to 150 kg per meter, with deflection kept below 1/250th of the span, ensuring structural reliability and the safe management of heavy cable loads.
