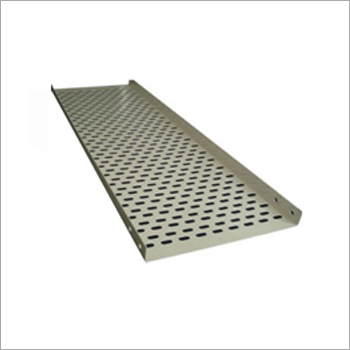

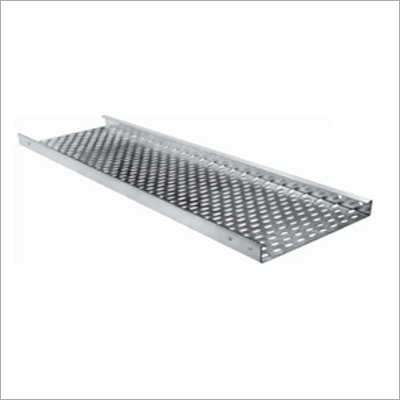

Networking Perforated Cable Tray

Name: Networking Perforated Cable Tray
Brand: THE GRATINGS INDIA ENGINEERING
Price: 75 INR
Availability: InStock

Price 75 INR/ Kilograms

Get a Price/Quote

MOQ : 5 Tons

Networking Perforated Cable Tray Specification

Max. Working Load
70 kg/m

Deflection
Less than 7 mm at max load

Surface Finish
Galvanized

Conductor Material
Steel

Product Type
Networking Perforated Cable Tray

Material
Pre-Galvanized Steel

Standard Thickness
1.6 mm

Length
2.5 meters

Width
150 mm

Side Rail Height
50 mm

Weight
4.5 kg per meter

Dimension (L*W*H)
2500 mm x 150 mm x 50 mm

Color
Silver

Installation Method
Wall, Rack, Ceiling, or Raised Floor Mounted

Application
IT Infrastructure, Data Centers, Telecom, Industrial

Length Options Available
1.5m, 2.5m, 3m

Accessories
Tray Cover, End Plate, Coupler, Clamp, Support

Corrosion Resistance
High

Compatibility
Suitable for Network, Data, and Power Cables

Fire Resistance
Complies with IS 8623, IS 1079 Standards

Perforation Type
Slot and Round Hole Combination

Edge Type
Smooth Edges for Cable Protection

Temperature Range
-10°C to 120°C

Customization
Sizes, Thickness and Finishes on Request

Networking Perforated Cable Tray Trade Information

Minimum Order Quantity
5 Tons

Supply Ability
5 Tons Per Day

Delivery Time
1-7 Days

About Networking Perforated Cable Tray

We are counted as a top notch quality of Networking Perforated Cable Tray. It is built is a precised design to render a superior performance. This tray is suitable to require a both degree of shield from the various external damages. It is properly galvanized and made with a steel material. Networking Perforated Cable Tray is crafted in a punched perforated pattern which provide a great strength for wire cables in engineering and allied industries.

Specification

Shape	Rectangular
Lengths	6 m
Width	1 m
Technique	Hot Rolled
Thickness Range	3-6 mm
Surface Finish	Hot Dip, Painted
Material	Mild Steel

Versatile Installation and High Durability

This cable tray offers multiple installation optionswall, rack, ceiling, or raised floorto meet diverse infrastructure needs. Crafted from pre-galvanized steel and finished in silver, it resists corrosion and maintains integrity under harsh conditions. The tray supports a maximum working load of 70 kg/m with less than 7 mm deflection, ensuring reliability in demanding environments.

Comprehensive Cable Protection and Standards Compliance

Smooth-edged design protects cables from damage, while slot and round hole perforations enhance ventilation and cable management. The tray complies with IS 8623 and IS 1079 fire resistance standards, making it a dependable choice for critical installations in data centers, IT infrastructure, telecom, and industry.

Customizable and Accessory-Compatible Solution

Available in standard lengths and customizable widths, thickness, and finishes, this tray adapts to various project requirements. It is compatible with essential accessories like covers, end plates, couplers, clamps, and supports, ensuring secure and organized cable routing for network, data, or power installations.

FAQs of Networking Perforated Cable Tray:

Q: How is the networking perforated cable tray installed?

A: The cable tray can be mounted on walls, racks, ceilings, or raised floors using standard accessories such as clamps and supports. The installation method can be chosen based on the layout and requirements of your IT infrastructure or industrial facility.

Q: What are the benefits of the slot and round hole perforation combination?

A: This unique perforation design provides improved airflow for cable cooling and flexible cable management. It also facilitates easier cable entry and exit points along the length of the tray, enhancing organization and system reliability.

Q: When should I use a galvanized steel cable tray for networking and power cables?

A: Galvanized steel trays are recommended when you need both high load capacity and strong corrosion resistance. Their use is ideal for environments with demanding operational conditions, such as data centers, industrial spaces, and telecom setups.

Q: Where is this cable tray most effectively used?

A: This tray is particularly suitable for IT infrastructure, data centers, telecom rooms, and industrial environments. Its robust design and versatile mounting options make it effective wherever structured cable support and fire safety compliance are required.

Q: What is the maximum working load, and what happens if it is exceeded?

A: The maximum working load is 70 kg per meter with a deflection of less than 7 mm at this load. Exceeding this load limit may compromise the trays structural integrity and can potentially damage the cables it supports.

Q: How can I customize the size, thickness, or finish of the tray?

A: Customization requests for size, thickness, or surface finish can be made directly to the manufacturer, supplier, or trader. They will provide options based on project specifications and can accommodate unique dimensions or finishes as required.

Q: What accessories are available for this cable tray, and how do they improve usage?

A: Accessories include tray covers, end plates, couplers, clamps, and supports. These components provide additional protection, allow seamless connections between tray sections, and ensure secure, stable mounting for optimal cable management.
